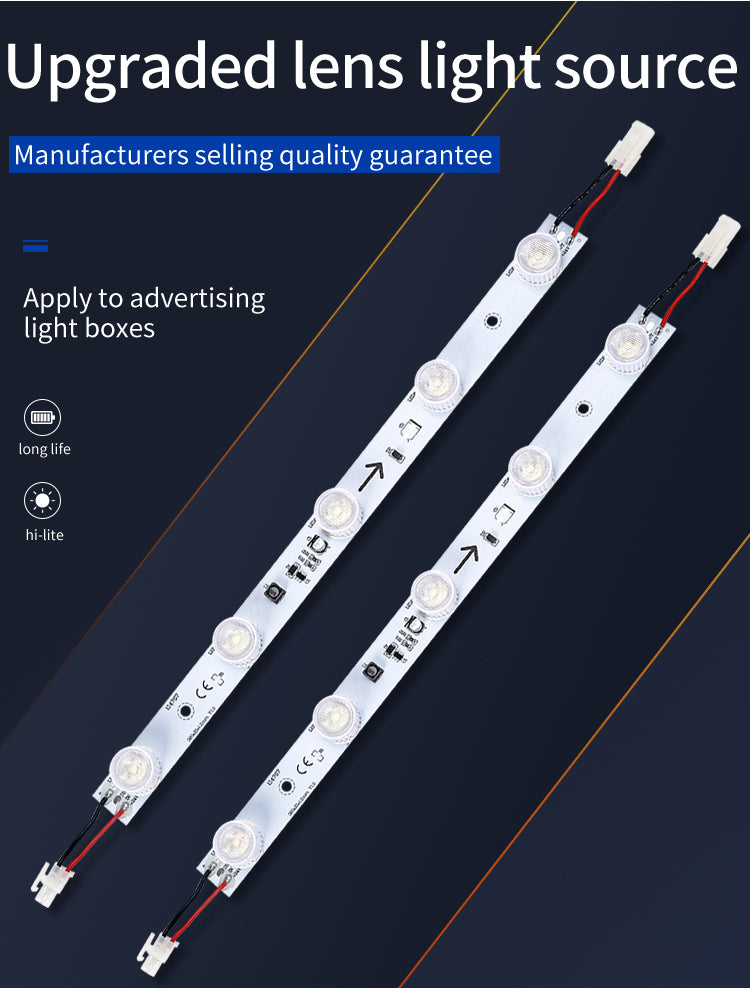

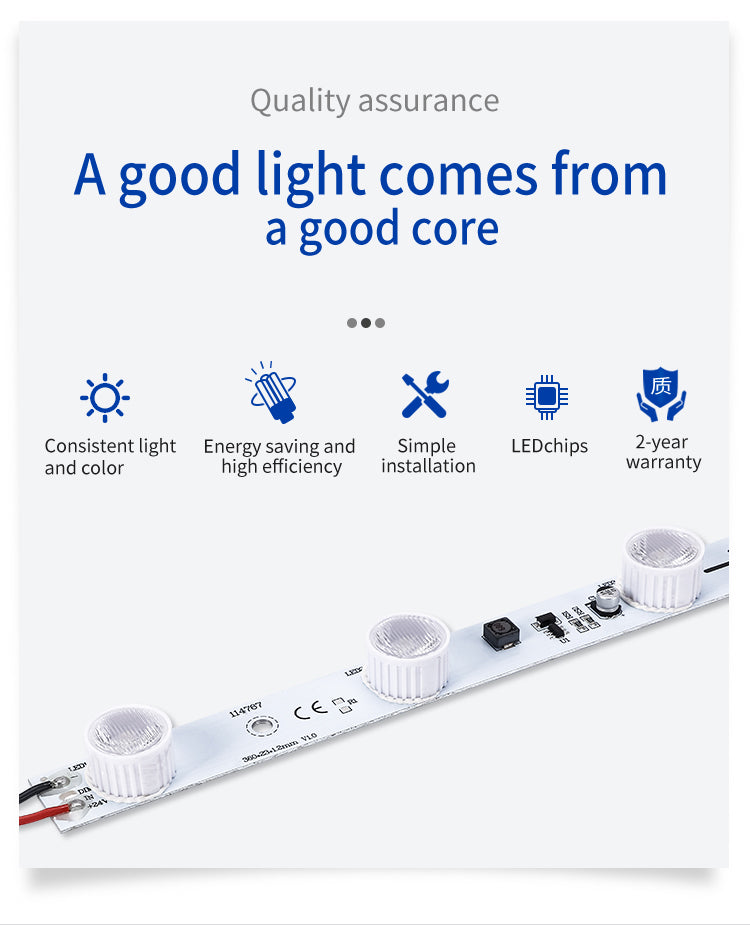

10W LED Rigid Strip Module for Lightboxes – Uniform Illumination, CRI90+, UL/ETL Listed

Professional-grade lightbox illumination — consistent, certified, and built for trade shows.

This 10W LED rigid strip module delivers hotspot-free, uniform illumination specifically designed for trade show lightboxes, backlit signage, and exhibition backdrops. With CRI90+ color accuracy and UL/ETL listing, your graphics will glow with vivid, even light that makes your display stand out on any show floor.

Perfect for:

• Trade show lightbox displays and backdrops
• Backlit signage and SEG fabric frame systems
• Exhibition and retail display illumination
• Architectural backlit panels

Why Choose This Rigid Strip Module

Uniform, Hotspot-Free Illumination

Engineered to eliminate bright spots and dark zones across your lightbox panel — so your graphics look exactly as intended, from edge to edge.

High CRI 90+ Color Accuracy

CRI90+ ensures your printed graphics and brand colors are rendered with true-to-life accuracy. What you see in print is what your audience sees on the show floor.

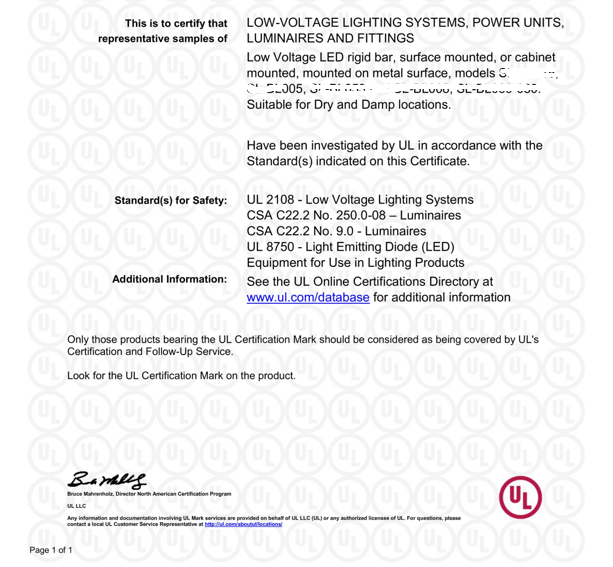

UL/ETL Listed – Exhibition Ready

Fully certified for professional use at trade shows and exhibitions worldwide. Meets the safety requirements of major exhibition venues.

Three Color Temperature Options

Available in 2700–3000K (warm), 4500–5000K (neutral), and 5500–6000K (cool) to match your display’s visual requirements.

Rigid Construction for Easy Installation

The rigid strip format provides a stable, easy-to-position module that fits neatly inside standard lightbox frames without bending or sagging.

Specifications

Frequently Asked Questions

What’s the difference between this and the flexible LED module?

This rigid strip module provides a stable, fixed-shape format that’s easier to position and install in standard lightbox frames. Flexible modules are better suited for curved or irregular frame shapes.

Is this suitable for professional trade show use?

Yes. This module is UL and ETL listed, making it suitable for professional exhibition environments and compliant with major venue safety requirements.

How Many Modules Do You Need?

This is a side-lit module (360mm long) — installed inside the lightbox frame along the edges, facing inward. Quantity is based on the length of each frame edge where modules will be mounted.

⚠️ Important: Do not calculate by lightbox area. Measure the inner edge length and space modules no more than 40cm apart for hotspot-free results.

Tip: Install on opposite edges (top + bottom or left + right) for best uniformity. For large lightboxes, all four sides are recommended.

Shipping & Delivery

• ✅ Ships within 2–5 business days of order confirmation
• ✅ Customs-friendly commercial invoice included
• ✅ Factory direct — no middleman markup

Not sure how many modules you need? Contact us with your lightbox dimensions. Need bulk pricing? View Wholesale & Volume Pricing.
