Professional light boxes are widely used in exhibitions, retail stores, airports, and advertising displays. However, one common problem faced by manufacturers and installers is uneven illumination — especially darker corners and edges. Understanding why this happens is the first step toward achieving consistent, professional-quality backlighting.
1. Why Do Light Box Corners Become Dark?
① Light Distribution Limitations
LED light sources do not produce perfectly uniform illumination across large surfaces. As frame size increases, LED spacing becomes wider, and installation positions become more constrained — corners naturally receive less light than the center of the display. This is a fundamental physics challenge, not a product defect.
② Poor LED Layout Design
Many light boxes are designed with LEDs installed only in the central area of the frame. While this approach reduces cost and simplifies wiring, it creates a predictable result: bright center, dark corners. Without deliberate corner coverage, uneven illumination is almost inevitable in larger formats.
③ Limited Installation Space
Aluminum profile frames — common in SEG fabric light boxes and custom display structures — often have very limited internal depth and width. Standard long LED bars simply cannot be positioned in corners or narrow sections of the frame, leaving those areas without direct illumination.
2. Common Solutions for Uneven Light Box Illumination
The industry has developed several approaches to address this problem. Each has trade-offs worth understanding before specifying a solution.
Solution 1: Increase LED Quantity
Adding more LED bars across the entire frame increases overall brightness and can reduce dark zones. However, this approach comes with real costs:
- Higher component cost per unit
- More complex wiring and assembly
- Increased heat generation inside the frame
- Higher power consumption
For large-format displays, this can quickly become impractical.
Solution 2: Reduce LED Spacing
Placing LED bars closer together improves uniformity but creates its own challenges — more complicated assembly, tighter tolerances, and increased cost. In custom or irregular frame shapes, consistent spacing may not even be geometrically possible.
Solution 3: Add Supplemental Corner Lighting ⭐
A more targeted approach is to use compact supplemental LED modules specifically in areas where standard LED bars cannot effectively reach. Rather than redesigning the entire lighting layout, supplemental modules are placed precisely where coverage is needed — corners, narrow sections, and structural dead zones.
This method improves brightness consistency without significantly increasing overall cost, heat, or wiring complexity. It is particularly effective for:
- Large format light boxes with wide LED spacing
- Custom and irregular display frame shapes
- Deep-frame structures with internal obstructions
- Retrofit situations where existing LED layouts cannot be easily changed
3. Why Compact LED Modules Are Useful for Custom Displays
Not all LED lighting components are designed for the same purpose. While high-output LED bars are optimized for maximum brightness across large surfaces, compact supplemental modules are engineered for precision placement in difficult areas.

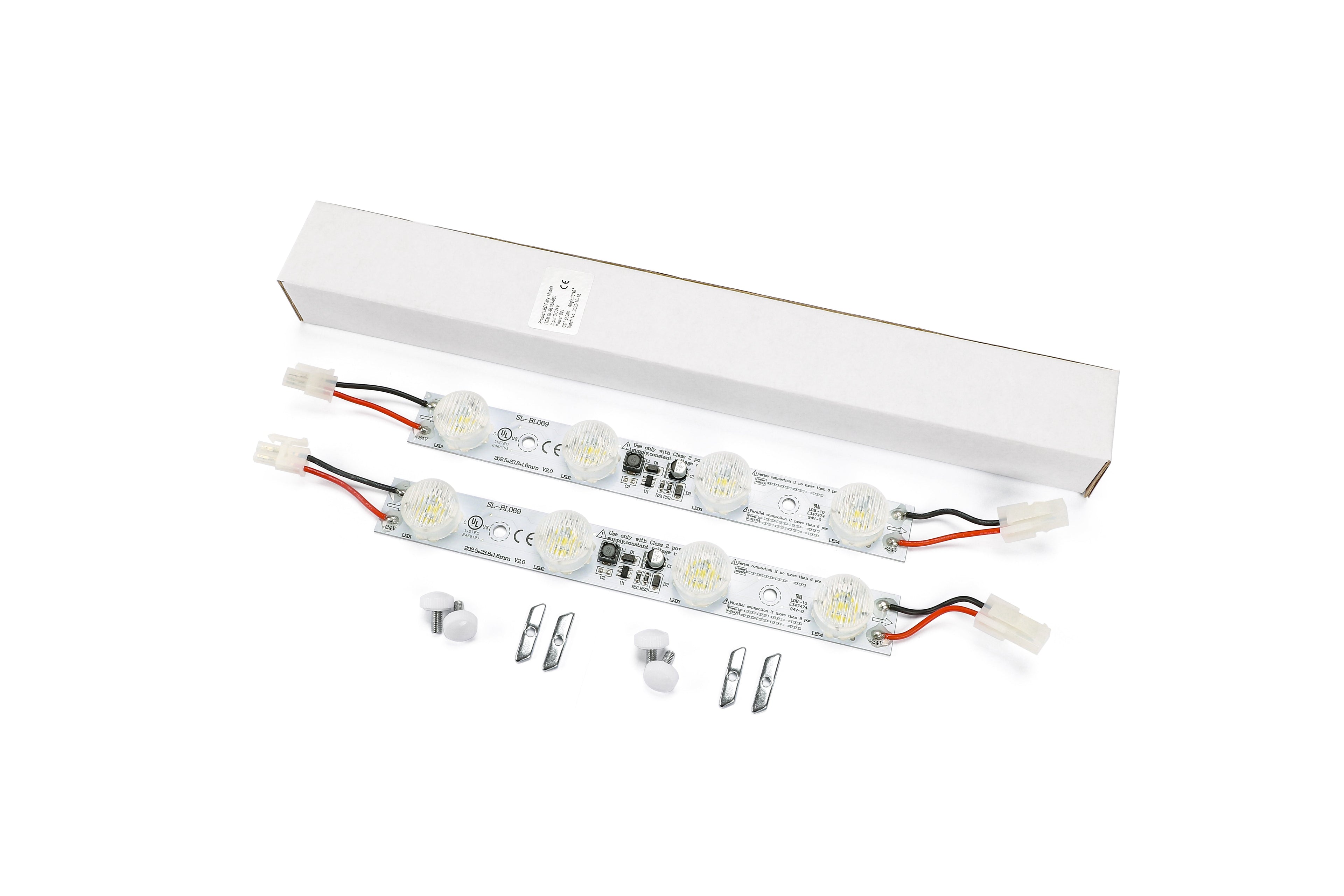

Small Size for Tight Spaces
A compact LED module — typically under 210mm in length — can be positioned in corners, along narrow aluminum profiles, and inside irregular frame structures where standard bars cannot fit. This flexibility makes them valuable for custom display manufacturers and professional installers working with non-standard frame geometries.
Easy Installation
Screw mount installation with standard DC24V connectors allows supplemental modules to integrate directly into existing light box wiring systems. No special tools or custom wiring harnesses are required.
Flexible Color Temperature Options
Supplemental modules are available in multiple CCT options — from warm white (2800K–3200K) to natural white (4200K–4500K) to cool daylight (6500K–7000K) — allowing installers to match the primary LED system for consistent color across the entire display face.
4. Applications Where Corner Lighting Matters Most
Uneven illumination is most visible — and most damaging to display quality — in high-visibility professional environments.
- Exhibition Light Boxes: Trade show displays are viewed up close by professional buyers. Dark corners immediately signal poor quality and undermine brand credibility.
- Retail Advertising Displays: Backlit signage in retail environments must maintain consistent brightness across the entire graphic to communicate effectively.
- Airport and Public Displays: Large-format public displays are often viewed from multiple angles. Corner darkness is immediately apparent in wide-format installations.
- Custom Fabric Light Boxes: SEG and MODULAP fabric frames with complex shapes are particularly prone to corner coverage gaps due to their structural constraints.
5. How Professional Light Box Manufacturers Improve Lighting Quality
Professional manufacturers do not simply add more LEDs and call it solved. A systematic approach to light box illumination considers:
- LED placement strategy — where bars are positioned relative to frame geometry
- Light distribution modeling — understanding how beam angle and spacing interact with frame depth
- Frame structure constraints — identifying areas where standard components cannot reach
- Supplemental lighting integration — specifying compact modules for coverage gaps before assembly
This approach produces displays with measurably more consistent illumination — and fewer field complaints from end clients about dark spots and uneven brightness.
6. Choosing the Right LED Backlighting Components
Different lighting challenges require different components. A complete light box lighting system typically combines multiple component types:
- Large format light boxes (primary illumination): High Output LED Bar — maximum brightness for large surface coverage
- Uniform edge-to-edge illumination: Edge Lighting Bar — consistent side-lit illumination across the panel
- Corner and difficult areas (supplemental): Compact Corner LED Light Bar — targeted illumination for hard-to-reach zones
- Hotspot-free precision lighting: Optical Lens LED Module — precision beam control for signage and advertising panels
Selecting the right combination for your specific frame geometry and brightness requirements is the foundation of professional light box design.
Conclusion
Achieving professional light box illumination requires more than choosing the brightest LEDs available. Proper light distribution planning, awareness of frame structure constraints, and the strategic use of supplemental lighting solutions are what separate consistently high-quality displays from those with visible dark zones and uneven brightness.
Whether you are designing a new light box system or troubleshooting an existing installation, understanding the root causes of corner darkness is the starting point for a better solution.
Questions about your specific light box dimensions or LED layout? Contact our team — we help manufacturers and installers specify the right components for their display structures.
