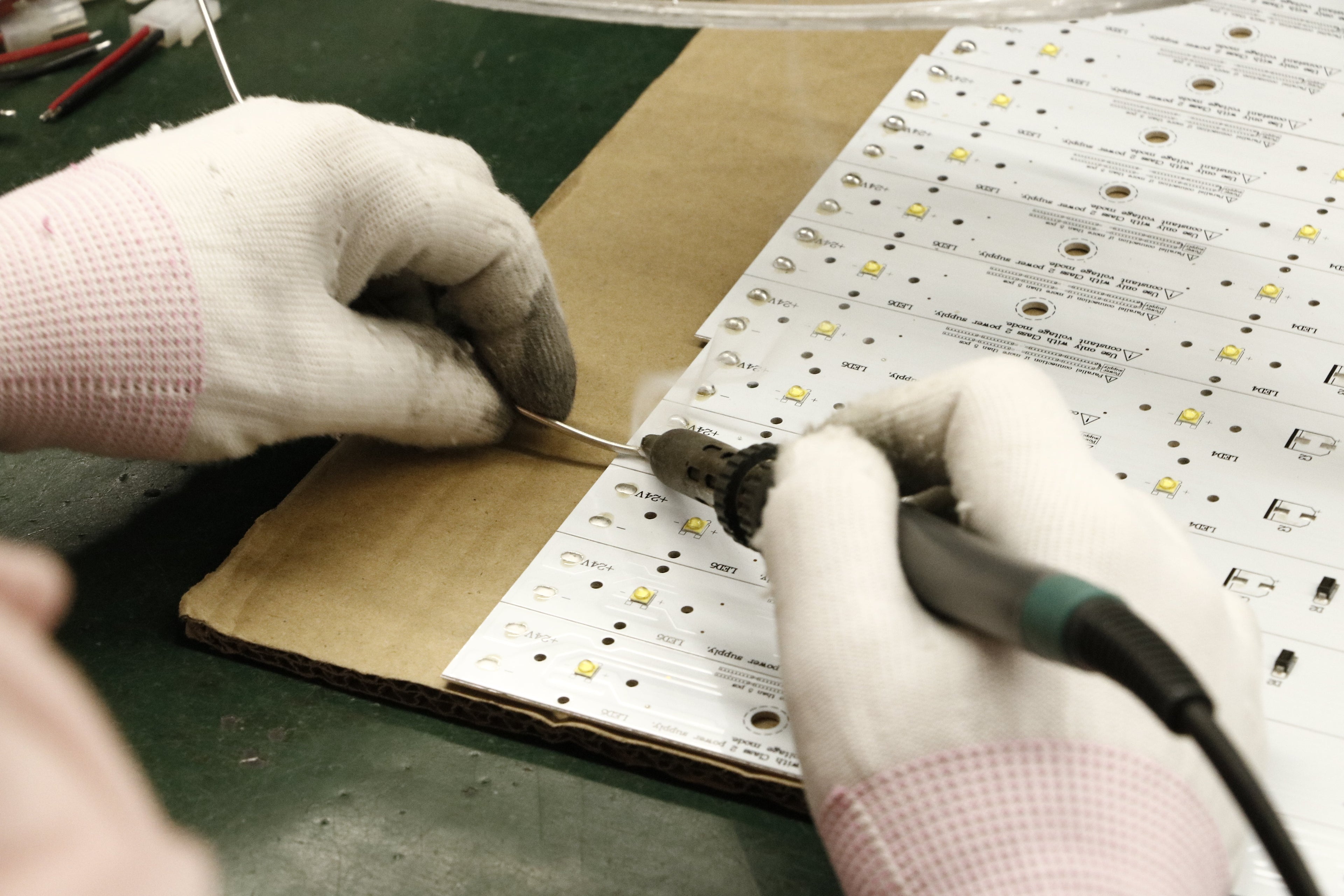

A production-ready LED light box component needs a documented specification and a repeatable installation method. A bright prototype is only the first step. Approve the complete assembly and record the parts, layout and checks needed to reproduce it.
What to request before a production order
| Area | Evidence to request |
|---|---|
| Mechanical | Dimensioned drawing including lens height, mounting points and connector clearance |
| Electrical | Voltage, power tolerance, pinout, polarity, cable ratings and permitted feed arrangement |
| Optical | Beam distribution, light output conditions, fixed CCT range and stated color consistency |
| Thermal | Operating limits and mounting or heat-transfer requirements |
| Documentation | Exact model, applicable certificates and installation instructions |
| Repeat orders | Part number, revision, batch identification and change-notification process |
Component certification does not certify the finished light box. See UL's component guidance. Confirm the exact ordered configuration and destination requirements with the appropriate project documentation.
Approve an assembly, not an isolated LED
- Build the intended frame with its diffuser, reflector and final graphic.
- Check brightness and color at center, edges and corners. Define acceptance criteria with the supplier before ordering.
- Verify driver loading, voltage drop and operating temperature against the component instructions.
- Time the actual mounting and wiring work; check connector access and how a failed bar will be replaced.
- Retain an approved reference sample, layout drawing and bill of materials.
Plug-in connections can simplify assembly, but connector family names alone do not confirm mating parts, pin assignment or allowable current. A daisy-chain recommendation applies to the documented system, not every harness with a similar plug.
A component to evaluate
The 10W edge-lit bar is specified at DC24V, 1000lm ±10%, 360 × 23 × 16mm including lens and 15° × 45°. It uses a 2-pin Molex 5557 / Mini-Fit Jr. format. Confirm the drawing and applicable certification documents for the exact configuration; the external driver is not included.
Make repeat purchasing controlled
Check incoming dimensions, connector orientation, labels and sample appearance against the approved specification. Reassess a changed LED, lens, CCT, driver or cable rather than assuming the old approval still applies.
Compare light box lighting components by total assembly cost: parts, wiring, installation, transport and maintenance. Use measured project data to compare installation time and lifecycle costs.
