An optical lens redirects LED light into a chosen distribution. It can help a light box use light more effectively, but it does not increase the LED's emitted lumens or guarantee uniform brightness. The result depends on the complete frame, reflector, diffuser and printed graphic.
Edge lighting and direct backlighting are different
Edge-lit bars sit at the frame perimeter and aim inward across the display. Direct backlighting places LEDs behind the graphic and aims toward it. A rectangular light box can use either arrangement; not every light box is illuminated from its edges.
Frame depth is the distance perpendicular to the graphic. In an edge-lit box, the distance light travels toward the center runs across the display width or height. Confusing these dimensions can lead to the wrong lens or layout.
What does 14° × 47° mean?
An asymmetric lens has a narrower distribution in one plane and a wider distribution in the other. The two numbers describe beam angles, not coverage distances. Check the drawing and orientation: rotating a bar changes which plane receives the wider spread.
A narrower axis can help direct light across the cavity, while the wider axis can help neighboring beams overlap. Neither angle establishes a universal bar spacing. A wide-angle LED or diffuser may still be appropriate for a different frame.
Test optics before increasing wattage
- Build a sample with the intended frame depth, reflective surfaces and final graphic.
- Test bar orientation, spacing and one-edge, opposing-edge or multi-edge placement.
- Compare center, edges and corners at the same operating conditions. Look for bright bands and visible LED points.
- Adjust the layout, then compare electrical load at the required visual result. Claim energy savings only from that comparison.

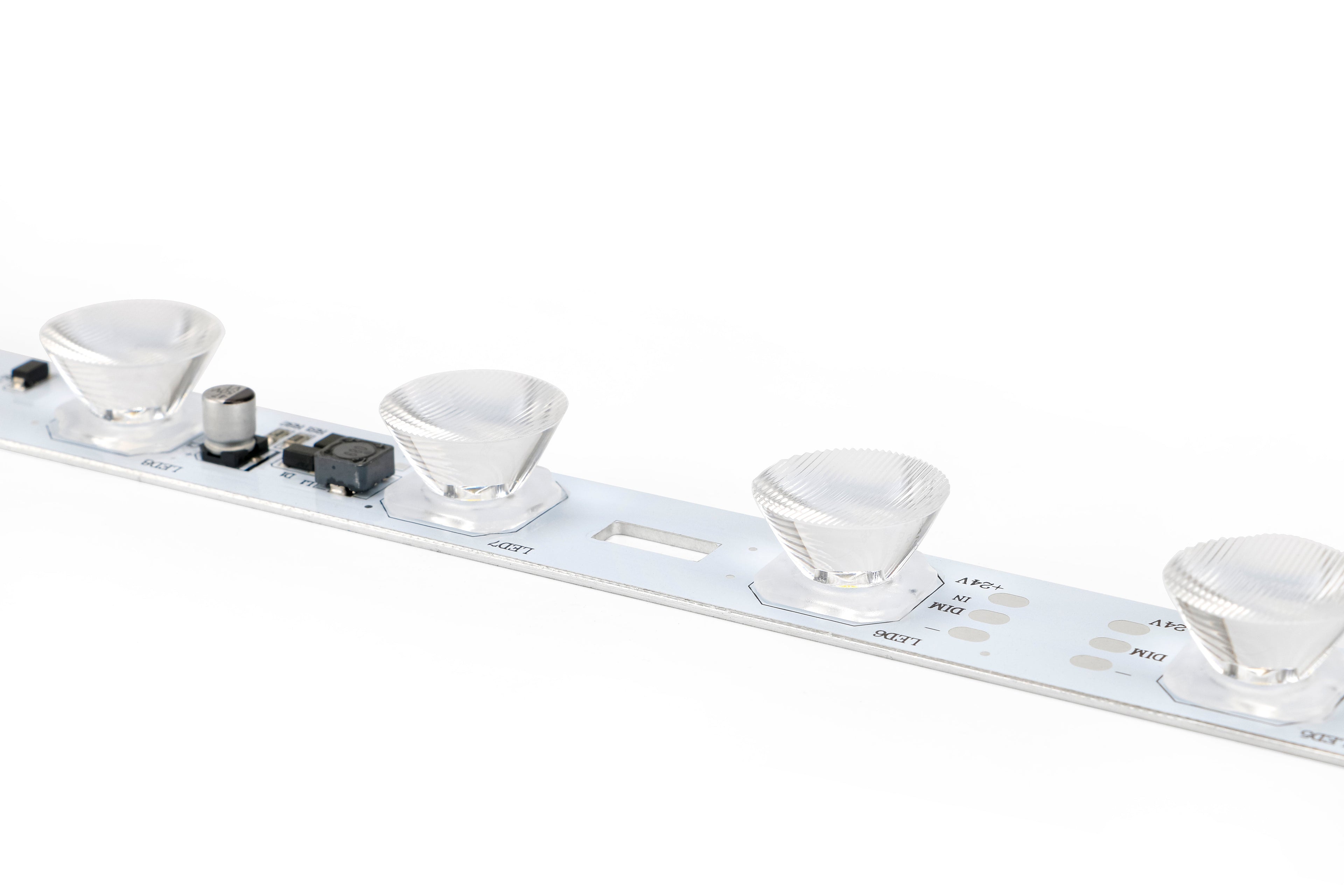

A lens-controlled bar example
The 27.5W optical edge-lit bar is specified at 3300lm, 710 × 25 × 16mm including the lens, DC24V and 14° × 47°. It uses a 2-pin Molex 5557 / Mini-Fit Jr. format and requires an external constant-voltage driver.
Four bars represent 110W nominal load before operating margin. Confirm driver capacity, cable rating, polarity and permitted run arrangement; connector shape alone does not prove compatibility.
Compare the 14W edge-lit bar and linkable light box bars using the same sample conditions. Select the combination that meets the display requirement, rather than assuming every lens-controlled product is more efficient.
