How much does lens angle affect an edge-lit fabric lightbox? To answer that question with more than a beam-angle diagram, we compared three asymmetric lens distributions inside the same single-sided lightbox and measured illuminance at 25 points across the graphic.
The result was useful because the brightest configuration was not the best-looking one. A narrower test lens produced the highest average illuminance, but it also produced yellow patches and the poorest uniformity. In this test, the 15 × 60° distribution gave the best balance of useful brightness, hotspot control, and visual uniformity.
Note on naming: the original internal product and test codes have been replaced with Lens A, Lens B, and Lens C. Lens angles, dimensions, power, distances, and measured results are unchanged.
What we tested
The test used a 12 cm-deep, single-sided aluminum-frame lightbox measuring approximately 2.4 m × 3.0 m. Sixteen 10 W linear LED modules were installed for top-and-bottom edge illumination. The face material was a 320 g white graphic fabric.
- Lightbox: 12 cm single-sided frame, approximately 2.4 m × 3.0 m
- Lighting method: top-and-bottom edge lighting
- LED quantity: 16 modules
- Module power: 10 W per module
- Measurement grid: 25 points arranged in five rows and five columns
- Variables: lens distribution and light-source-to-fabric distance
- Distances tested: 5 cm, 6 cm, and 8.5 cm where data were available
The three anonymized optical configurations were:
- Lens A: 9 × 50°, nominal module output 700 lm
- Lens B: 15 × 60°, nominal module output 700 lm
- Lens C: 10 × 45°, nominal module output 900 lm
These are asymmetric distributions. The two angle values describe spread in two perpendicular planes, so they should not be interpreted as a single circular beam angle.
How we compared uniformity
Average illuminance is helpful, but it cannot describe the entire graphic. We therefore looked at four things together:
- Average illuminance across all 25 measurement points
- The lowest measured point divided by the 25-point average
- Observed hotspots, yellow patches, or dark areas
- The technician’s overall visual assessment
The minimum-to-average ratio is included as a simple way to compare the tested layouts. A higher value means the darkest measured point is closer to the overall average. It is not a substitute for a complete photometric specification, but it makes the contrast between these trials easier to see.

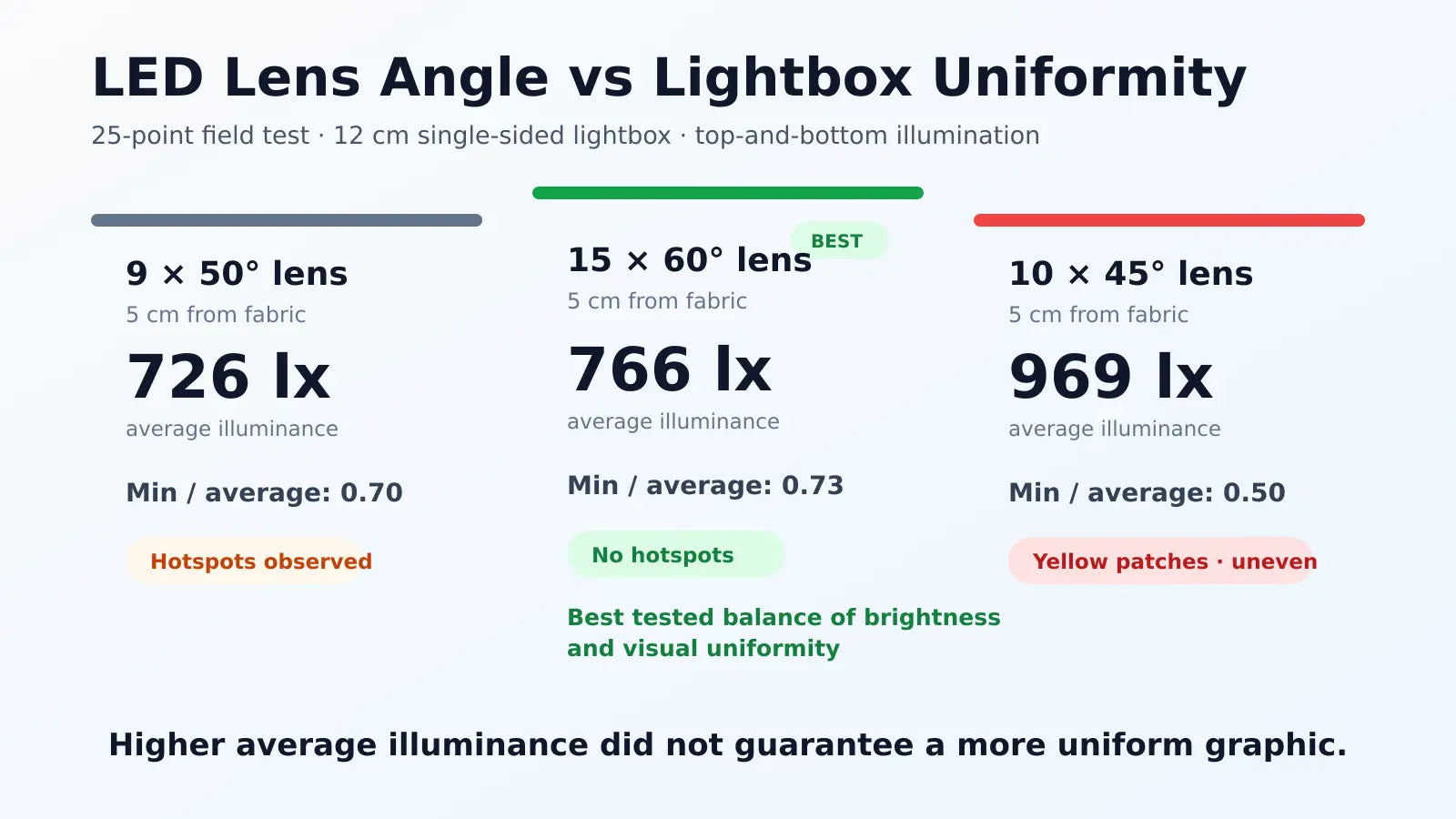

Results at 5 cm from the graphic
| Optical setup | Average | Measured range | Minimum / average | Visual result |
|---|---|---|---|---|
| Lens A — 9 × 50° | 725.7 lx | 507–960 lx | 0.70 | Hotspots observed; overall grade A |
| Lens B — 15 × 60° | 766.0 lx | 560–1,100 lx | 0.73 | No hotspots; visually uniform; overall grade A+ |
| Lens C — 10 × 45° | 969.2 lx | 480–1,700 lx | 0.50 | Yellow patches and slight LED visibility; non-uniform; grade C |
Lens C delivered about 27% more average illuminance than Lens B at the same 5 cm distance. However, its darkest point was only about half of the average, and the 25-point range extended from 480 to 1,700 lx. The higher average was created by strong bright zones rather than an evenly illuminated face.
Lens B did not produce the highest numerical average, but it removed visible hotspots in the test and achieved the strongest visual grade. For a finished graphic, that is usually the more valuable result.
What happened when the distance increased?
| Lens | Distance | Average | Minimum / average | Observation |
|---|---|---|---|---|
| Lens A — 9 × 50° | 5 cm | 725.7 lx | 0.70 | Hotspots; visually uniform overall |
| Lens A — 9 × 50° | 6 cm | 713.1 lx | 0.76 | Hotspots remained |
| Lens A — 9 × 50° | 8.5 cm | 758.9 lx | 0.55 | Hotspots; less uniform; grade B |
| Lens B — 15 × 60° | 5 cm | 766.0 lx | 0.73 | No hotspots; uniform; grade A+ |
| Lens B — 15 × 60° | 6 cm | 784.2 lx | 0.71 | No hotspots; uniform |
| Lens B — 15 × 60° | 8.5 cm | 808.6 lx | 0.57 | No hotspots, but less uniform; grade B |
| Lens C — 10 × 45° | 5 cm | 969.2 lx | 0.50 | Yellow patches; non-uniform; grade C |
| Lens C — 10 × 45° | 6 cm | 964.2 lx | 0.53 | Yellow patches; non-uniform; grade C |
Moving the light source farther from the fabric did not automatically improve the result. At 8.5 cm, both Lens A and Lens B produced a wider spread between the brightest and darkest regions and were assessed as only “fairly uniform.” This is a reminder that edge-lit optics must be matched to the full cabinet geometry, not selected by distance alone.
What this test tells a lightbox builder
1. Do not select an LED module by lumens alone
Lens C used a higher-output module and produced the highest average illuminance. It still delivered the weakest visual result. In fabric lightboxes, the distribution of light across the graphic is often more important than the peak or average number.
2. A wider asymmetric distribution can reduce visible hotspots
Within this specific 12 cm cabinet, Lens B’s 15 × 60° distribution covered the graphic more effectively than the two narrower tested distributions. It maintained useful brightness without the yellow patches seen with Lens C.
3. More separation is not always better
A common rule of thumb says that increasing the distance between the LEDs and the graphic improves blending. That may be true for some backlit layouts, but this was an edge-lit configuration. Changing the distance also changed where the asymmetric beams overlapped, and the 8.5 cm trials were less uniform.
4. Judge the finished graphic, not only the meter
A lux meter can find weak regions that the eye may miss, while a visual inspection can reveal yellow patches, LED dots, and directional bands that an average cannot describe. A reliable prototype review uses both.
Important limitations
This was a comparative engineering test, not a universal spacing chart. The result applies to the tested frame depth, module count, top-and-bottom arrangement, fabric, module output, and optical distributions. Changing any of the following can change the preferred lens:
- cabinet depth and internal reflectance
- graphic fabric transmission and color
- module spacing and distance from the fabric
- two-sided versus single-sided construction
- edge lighting versus backlighting
- module lumen output and thermal conditions
For production work, prototype the actual cabinet whenever the graphic is unusually large, shallow, dark, or critical for color appearance.
Practical starting point
For a cabinet close to the tested geometry, the 15 × 60° asymmetric distribution at approximately 5–6 cm from the graphic is the strongest starting point among the tested options. It should still be verified in the final frame with the actual fabric and module spacing.
If you are planning a new SEG fabric lightbox, start with our lighting solutions guide, compare available SEG lightbox LED modules, or browse the full LED module range. For a custom cabinet, send the frame depth, illuminated dimensions, lighting method, and fabric specification so the optical layout can be checked before production.
Short answer
In this 25-point test, the 15 × 60° lens produced the best overall lightbox result. The narrower 10 × 45° option was brighter on average, but it created yellow patches and poor uniformity. The test shows why lens distribution, cabinet geometry, and the finished graphic must be evaluated together.
