To light a large trade show graphic, choose a fixture whose beam reaches the whole surface from the available mounting position, then test the layout under venue lighting. Higher wattage alone will not correct dark edges, glare or a poorly aimed lamp.
Start with the display, then choose the light
- Record graphic width and height, mounting height and the distance from lamp to graphic.
- Identify fabric, matte print or glossy panels. Glossy surfaces may reflect the fixture toward visitors.
- Check hall lighting and the main viewing position. Viewing distance alone does not set the required brightness.
- Measure the structural profile and confirm clamp fit, load suitability and cable clearance.
Read output and beam angle together
Lumens describe emitted light; watts describe electrical power. Neither tells you how evenly the graphic will be lit. A wide beam can cover more surface but also spill into the aisle. A narrow beam can emphasize products while leaving gaps across a wall.
An extended lamp head is worth testing for wide graphics, but its length does not guarantee fewer fixtures. Aim adjacent beams to overlap and inspect the top, center, bottom and both edges. Add or reposition a light only where the test shows a coverage gap.
A current high-output example

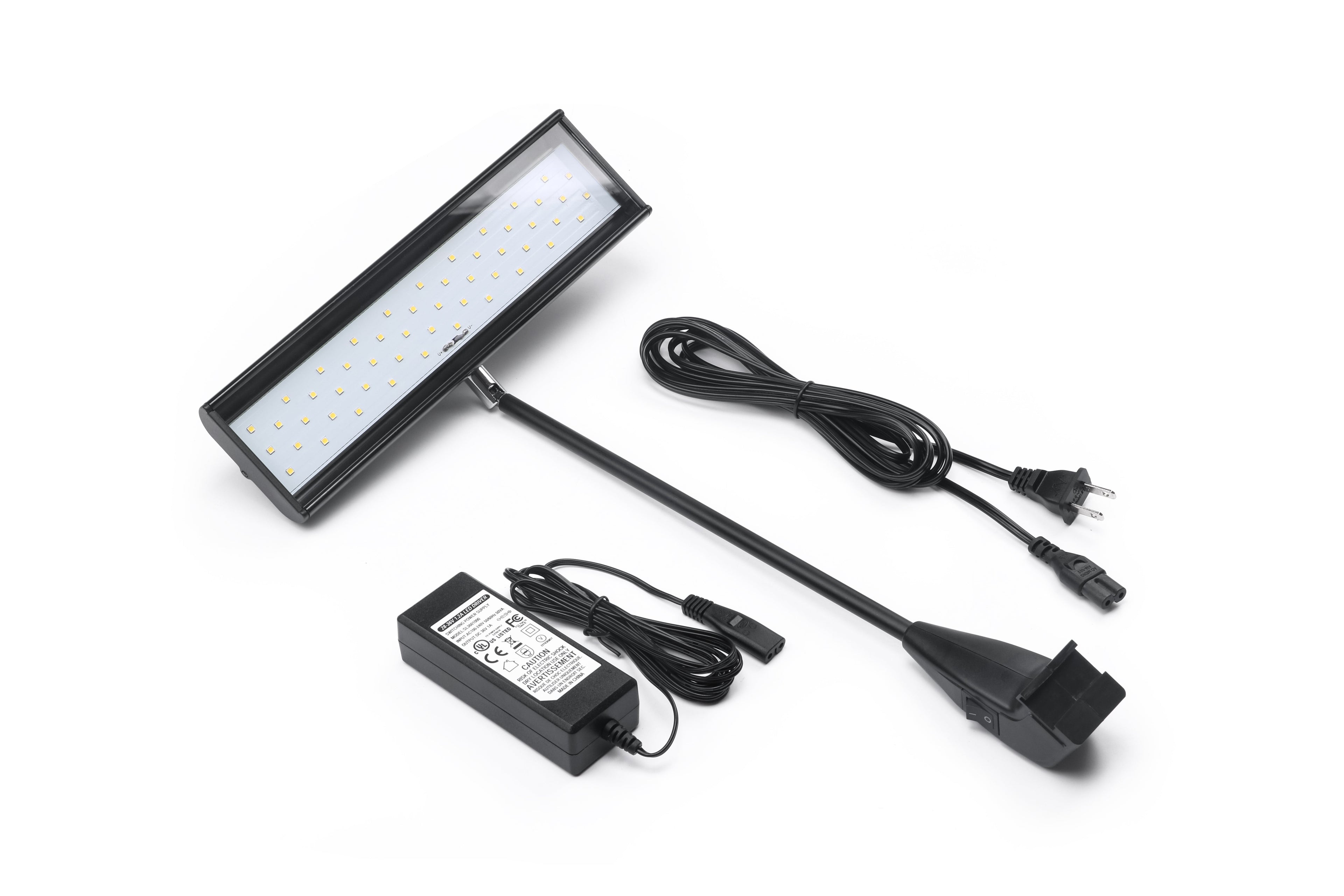

The 43W wide-beam display arm light has published specifications of 43.2W, 3800lm ±10%, a 120° beam and a 465mm extended head. It uses an included adapter for each fixture and is not daisy-chain linkable. Select one fixed color-temperature range and the destination plug when ordering.
These specifications are a starting point for a layout, not a coverage promise for every booth. Compare other LED exhibition lights when a different beam or output is needed.
Test before packing
- Assemble the actual graphic and frame, then aim the lights.
- Check readability, bright spots and reflections from the aisle.
- Test printed colors with the chosen white light and surrounding illumination.
- Plan one power connection per standalone fixture; check the venue's electrical and mounting requirements.
- Label lamps, adapters and clamps so the tested arrangement can be repeated at the show.
There is no reliable fixture count based only on booth floor size. A useful quantity plan needs the graphic dimensions, beam, mounting position and target appearance.
