How to Light a 20x20 Island Trade Show Booth: Setup Guide

A 20×20 ft island booth is a different challenge from a standard inline booth. You have four open sides, no back wall to anchor your lighting to, and visitors approaching from every direction. The lighting strategy that works for a 10×10 backwall display doesn't translate directly to an island format.

This guide covers the specific decisions that matter for 20×20 island booth lighting: how many lights, where to position them, how to handle multiple sides, and how to avoid the most common island booth lighting mistakes.

How Many Lights Does a 20x20 Island Booth Need?

The standard recommendation is 8 to 12 LED display arm lights for a 20×20 ft island booth, depending on the booth structure and what you're illuminating.

• 8 lights — Minimum for a booth with four graphic panels (2 lights per side). Adequate if the venue has good ambient lighting.
• 10 lights — Standard setup. Allows 2–3 lights per side with some flexibility for product spotlighting inside the booth.
• 12 lights — Recommended for booths with dark graphics, fabric surfaces, or venues with low ambient lighting (large convention centers with high ceilings).

Total power draw for 12 × 16W fixtures: 192W — well within the standard 500W electrical allowance for a 20×20 booth. Most venues allocate 1,000–2,000W for island booths, so power is rarely a constraint at this size.

Lighting Strategy for Four-Sided Booths

The key difference with an island booth is that every side is a front. Visitors approach from the aisle on all four sides, so all four sides need to look equally professional.

Recommended approach:

1. Treat each side as an independent 10×20 ft inline booth — Apply the same lighting logic: arm lights clamped to the top rail, spaced evenly, angled downward at 30–45 degrees.
2. Use consistent color temperature across all four sides — Mixing warm and cool white on different sides of the same booth creates a visually inconsistent experience as visitors walk around.
3. Add interior spotlighting for product displays — If your island booth has product displays or demo stations inside the perimeter, add focused spotlights (30–60° beam angle) aimed at specific products.

Structural Considerations for Island Booths

Island booths use a wider variety of structural systems than inline booths. Common configurations and their lighting implications:

Modular aluminum extrusion system

The most common island booth structure. Top rails on all four sides provide natural mounting points for arm lights. Standard clamp mount fixtures work perfectly.

Custom-built structure with no top rail

Some custom island booths use hanging structures, tension cables, or non-standard frames. In these cases, screw mount fixtures or track lighting systems may be more appropriate than clamp mount arm lights.

Double-deck island booth

Two-story island booths need lighting on both levels. The upper level typically has its own frame structure for mounting. The lower level may need additional lighting to compensate for the shadow cast by the upper deck.

Power Distribution in a 20x20 Booth

With 8–12 lights across four sides, power distribution requires planning:

• Use a central power strip or distribution box — Run a single heavy-gauge extension cord from the venue power outlet to the center of the booth, then distribute to each side.
• Balance the load across circuits — If the venue provides two separate circuits, split the lights evenly between them. Don't put all lights on one circuit.
• Check daisy-chain capability — If your fixtures support daisy-chaining, you can run multiple lights from a single outlet on each side, reducing the number of cables running to the center.
• Label all cables — In a 20×20 booth with 10+ lights, unlabeled cables create confusion during setup and teardown.

Common Mistakes in Island Booth Lighting

• Only lighting two sides — The two sides facing the main aisles get lights; the other two sides are left dim. Visitors approaching from the dim sides see an unfinished booth.
• Using the same number of lights as a 10×10 booth — A 20×20 booth has four times the graphic surface area of a 10×10. Scale your lighting accordingly.
• Ignoring the interior — Island booths often have product displays, demo stations, or meeting areas inside the perimeter. These need their own lighting — the perimeter arm lights are aimed outward and don't illuminate the interior effectively.
• Inconsistent color temperature — Ordering lights in batches from different suppliers or at different times can result in slightly different color temperatures across the booth. Order all lights for a single booth from the same batch.

Sample Setup: 20x20 Island Booth with Four Graphic Panels

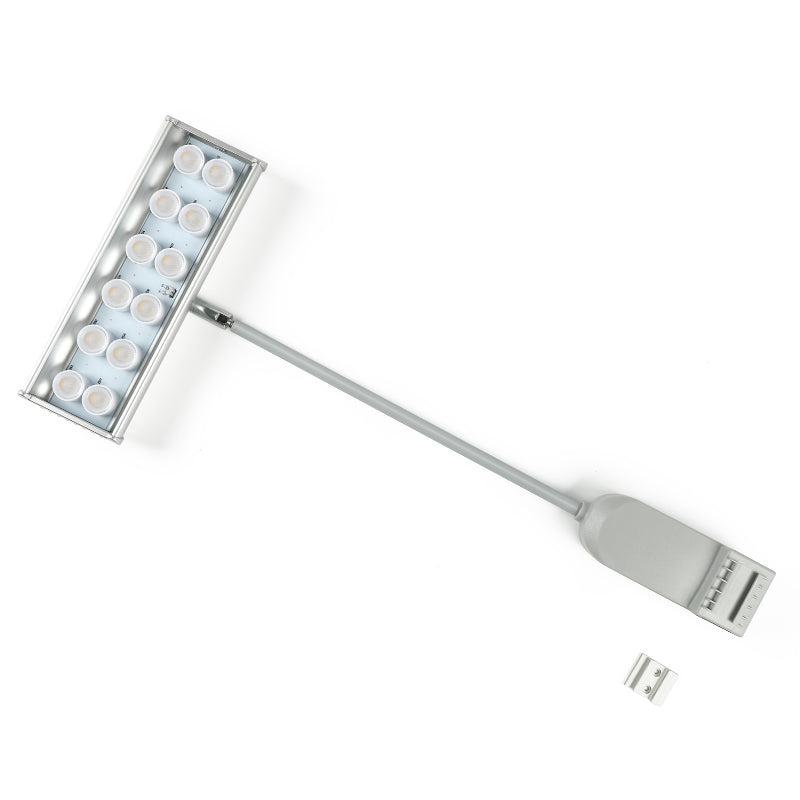

• 10 × 16W LED display arm lights, 4500K, CRI ≥ 90, 120° beam angle
• Distribution: 2–3 lights per side, spaced evenly across each 20 ft panel
• Arm length: 400–500mm
• Interior: 2 additional spotlights (60° beam angle) for product display areas
• Total power draw: 192W (lights) + spotlights — well within standard island booth electrical allowance

Frequently Asked Questions

Can I use the same arm lights I use for my 10x10 booth in a 20x20 island?

Yes. The same fixture works for both formats — you just need more of them. If you already own lights for a 10×10 booth, you can supplement with additional units for a larger show.

Do I need longer arm lengths for a 20x20 booth?

Not necessarily. Arm length is determined by the distance from the frame to the graphic surface, not by the overall booth size. Standard 400mm arms work for most modular island booth structures.

How do I handle lighting for an island booth with no graphic panels — just open product displays?

Without graphic panels to illuminate, shift to a product-focused lighting strategy: use narrower beam angles (30–60°) aimed at specific products or display surfaces, and add ambient fill lighting to make the overall booth environment inviting.

Need help planning your island booth lighting? Contact us with your booth dimensions and structure type. Or read our 10×10 booth lighting guide for the foundational principles that apply to any booth size.
