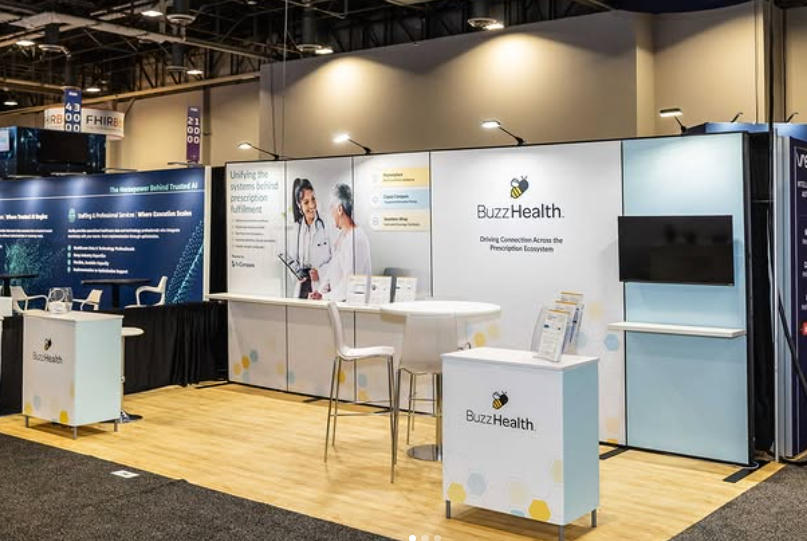

Why Light Placement Matters More Than Wattage
Most exhibitors obsess over which light to buy. The ones who consistently attract more visitors obsess over where to put it. A 50W arm light aimed at the wrong angle will underperform a 25W light positioned correctly every single time.
This guide covers exactly where to position exhibition arm lights in three common booth configurations — so you stop guessing and start drawing attention.
The Golden Rule: Light the Product, Not the Space
Your goal is to create contrast — bright products against a relatively darker background. This is what makes visitors' eyes snap to your display from across the aisle. If your entire booth is uniformly lit, nothing stands out.
Position your arm lights to create focused pools of light on your key products or graphics, not to flood the entire booth with even illumination.
10×10 Booth: The 2-Light Setup
A standard 10×10 booth needs a minimum of two arm lights to avoid dead zones and uneven shadows.
- Position 1 — Left rear corner: Aim at a 30–45° downward angle toward the center-right of your display. This covers your primary product zone.
- Position 2 — Right rear corner: Aim toward the center-left, crossing the beam of the first light. The overlap in the center creates a bright focal point with no harsh shadows.
For a 10×10 with a back wall graphic, mount both lights at the top of the back wall frame and angle them slightly forward toward the aisle rather than straight down. This illuminates the graphic and spills light onto products on the table in front.
Recommended: 25W LED Booth Display Arm Light – 3250lm, CRI90+ — two units linked via daisy chain from a single outlet.
10×20 Booth: The 4-Light Setup
A 10×20 booth is essentially two 10×10 zones. Treat them independently, then connect them.
- Zone A (left half): Two lights in the rear corners, crossed beams as above.
- Zone B (right half): Same configuration.
- Center connection: If you have a product display or demo station in the center, add a fifth light aimed directly down at it from the top rail.
With a linkable system, all four or five lights can run from a single power drop — critical at venues where power outlets are limited and expensive.
Recommended: 50W Linkable LED Display Arm Light – 5500lm, Daisy Chain up to 6 — one outlet, full booth coverage.
20×20 Island Booth: The 360° Challenge
Island booths are visible from all four sides, which means you need to light all four sides — and avoid creating dark interior zones that make the booth feel closed off.
- Perimeter lighting: Mount arm lights on all four outer edges of the top frame, angled inward at 30°. This creates a bright perimeter that draws attention from every aisle.
- Interior lighting: Add downlights or arm lights on any interior columns or product towers, aimed at key display surfaces.
- Avoid center-only lighting: A single overhead light in the center of an island booth creates a cave effect — bright in the middle, dark at the edges where visitors enter.
Common Placement Mistakes to Avoid
- Aiming straight down: Straight-down light creates harsh shadows under products and on faces. Always angle at 30–45° from vertical.
- Lighting the ceiling or back wall only: Indirect light looks elegant in hotels. At trade shows, it makes your products disappear.
- Placing lights too close together: Two lights 6 inches apart create one bright spot and leave the rest of the booth dark. Spread them to the outer edges.
- Ignoring the aisle view: Stand in the aisle and look at your booth before the show opens. If your products don't immediately catch your eye, reposition.
Beam Angle and Rotation: Use the Full Range
Quality exhibition arm lights offer 359° horizontal rotation and significant vertical tilt. Use this. After mounting, spend 5 minutes fine-tuning each light's angle while looking at the booth from the aisle perspective — not from inside the booth.
Quick Reference: Placement by Booth Type
| Booth Size | Minimum Lights | Recommended Wattage | Mount Position |
|---|---|---|---|
| 10×10 | 2 | 25W each | Rear top corners, crossed beams |
| 10×20 | 4 | 25W or 50W | Rear corners of each zone |
| 20×20 Island | 8+ | 50W | All four perimeter edges |
| Pop-up / Banner | 1–2 | 16W or 21W | Top of frame, angled forward |
Final Tip: Test Before the Show
Set up your full booth at home or in your warehouse before the show. Take photos from 10 feet away. If the products don't pop in the photo, they won't pop on the show floor. Adjust placement until they do.
Good exhibition booth lighting isn't about buying the brightest light — it's about putting the right light in the right place.
