Introduction

SEG (Silicone Edge Graphics) light boxes have become one of the most popular display formats in the trade show and exhibition industry. Their seamless fabric graphics, slim aluminum frames, and vibrant backlit appearance make them a premium choice for brands that want to make a strong visual impact.

However, the quality of an SEG light box display depends heavily on the lighting system behind it — or in front of it.

This complete buying guide covers everything you need to know about SEG light box lighting: how it works, the different lighting approaches available, and how to choose the right solution for your display.

What Is an SEG Light Box?

An SEG light box is a display system consisting of:

  • An aluminum extrusion frame
  • A fabric graphic with a silicone edge sewn around the perimeter
  • The silicone edge is pressed into a groove in the aluminum frame, creating a perfectly tensioned, seamless graphic surface

SEG displays are widely used for:

  • Trade show booths
  • Retail displays
  • Airport and hotel signage
  • Event backdrops
  • Museum and showroom installations

The defining feature of an SEG light box is its ability to be illuminated — either from behind (backlit) or from the front (front-lit) — creating a vivid, professional display that stands out in any environment.

Two Approaches to SEG Light Box Lighting

1. Backlit SEG Light Boxes

Backlit SEG displays have LED panels or strips integrated inside the aluminum frame, illuminating the fabric graphic from behind.

Advantages:

  • Uniform, even illumination across the entire graphic surface
  • Vibrant, high-impact visual appearance
  • No external lighting fixtures required
  • Clean, minimal aesthetic

Considerations:

  • Requires a translucent fabric graphic specifically designed for backlighting
  • Internal LED components must be maintained or replaced over time
  • Higher initial cost compared to front-lit solutions

Backlit SEG light boxes are the premium choice for brands that prioritize visual impact and a clean, integrated appearance.

2. Front-Lit SEG Displays

Front-lit SEG displays use external LED exhibition lights mounted above or in front of the display to illuminate the graphic surface from the outside.

Advantages:

  • Compatible with standard (non-translucent) fabric graphics
  • Lower cost than integrated backlit systems
  • Lighting fixtures can be repositioned or upgraded independently
  • Suitable for existing display frames without internal lighting

Considerations:

  • Requires external mounting hardware (arm lights, mounting clips)
  • Light distribution must be carefully managed to avoid hot spots or shadows
  • Cables must be managed as part of the booth setup

Front-lit solutions using professional exhibition arm lights are the most common approach for standard trade show booths.

Choosing the Right LED Lights for Front-Lit SEG Displays

When selecting LED exhibition lights for front-lit SEG displays, several factors determine the quality of the result.

Color Temperature

For SEG fabric graphics, color temperature has a significant impact on how colors appear to visitors.

  • 4000K–4500K (Neutral White) is the most versatile choice, providing accurate color rendering without the yellow cast of warm white or the harsh appearance of cool white
  • 5000K (Daylight) is suitable for displays where maximum brightness and clarity are priorities
  • Avoid mixing color temperatures across multiple lights on the same display

Color Rendering Index (CRI)

CRI is particularly important for SEG displays because fabric graphics contain a wide range of colors that must appear accurate under artificial lighting.

  • Minimum recommended CRI for SEG displays: CRI 90+
  • For premium brand displays: CRI 95+

A high CRI ensures that your brand colors, product photography, and graphic design appear as intended on the show floor.

Beam Angle

The beam angle of the exhibition light determines how evenly the graphic surface is illuminated.

  • Medium beam (30°–45°) is suitable for most standard SEG displays
  • Wide beam (45°–60°) provides more even coverage for larger displays
  • Narrow beams can create hot spots on fabric graphics and should generally be avoided for front-lit SEG applications

Mounting Height and Distance

The distance between the light fixture and the graphic surface affects both brightness and uniformity.

General guidelines:

  • Mount lights 30–60 cm above the top edge of the display for optimal coverage
  • For displays taller than 2m, consider using two rows of lights or higher-output fixtures
  • Angle the light head to direct illumination evenly across the full height of the graphic

Number of Lights Required

The number of exhibition arm lights needed depends on the width of the SEG display:

  • Up to 1m wide: 1 light
  • 1–2m wide: 2 lights
  • 2–3m wide: 2–3 lights
  • 3m+ wide: 3 or more lights, evenly spaced

Consistent spacing between lights ensures even illumination without dark zones between fixtures.

Mounting Systems for SEG Light Box Lighting

Proper mounting is essential for achieving professional results with front-lit SEG displays.

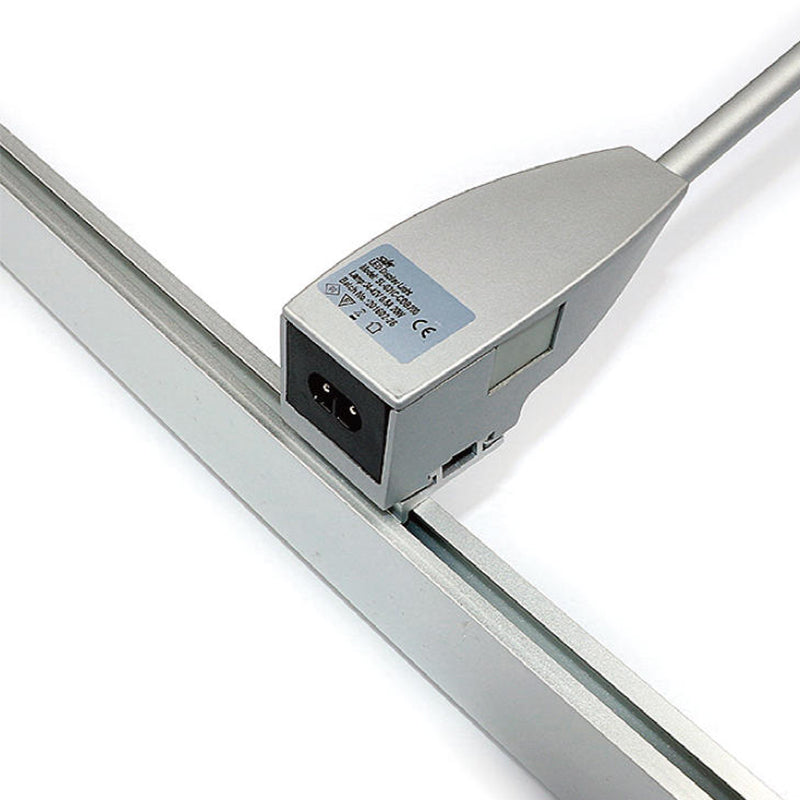

The standard approach uses aluminum mounting clips that slide into the light rail of the exhibition arm light and hook onto the top edge of the SEG aluminum frame.

Key advantages of this mounting system:

  • No drilling or permanent modifications to the display frame
  • Fast installation and removal
  • Reusable across multiple exhibitions
  • Secure connection that prevents movement during the event

For a complete guide to mounting systems, see: The Ultimate Guide to Mounting Trade Show Booth Lights.

Integrated vs. External Lighting: Which Is Right for You?

Factor Backlit (Integrated) Front-Lit (External)
Visual impact Very high High
Cost Higher Lower
Graphic type Translucent fabric only Any fabric graphic
Setup complexity Low (self-contained) Medium (requires mounting)
Flexibility Fixed system Lights can be repositioned
Maintenance Internal LED replacement External fixture replacement

For most exhibitors working with standard fabric graphics and modular display systems, front-lit exhibition arm lights provide the best combination of performance, flexibility, and value.

Common SEG Lighting Mistakes to Avoid

  • Using lights with low CRI — Colors in fabric graphics will appear inaccurate and unprofessional
  • Incorrect beam angle — Narrow beams create hot spots; wide beams may not provide sufficient brightness
  • Inconsistent color temperature — Mixing warm and cool lights on the same display creates an uneven, unprofessional appearance
  • Insufficient number of lights — Dark zones between fixtures reduce the visual impact of the display
  • Poor mounting — Unstable fixtures can shift during the exhibition, creating uneven illumination

Why BoothLights for SEG Display Lighting?

BoothLights exhibition arm lights are specifically designed for professional SEG display applications.

Our lights feature:

  • CRI 90+ LED chips for accurate color rendering on fabric graphics
  • Adjustable beam angles for flexible coverage
  • Neutral white color temperature options (4000K–5000K)
  • Compatible aluminum mounting clip systems for tool-free installation on SEG frames
  • Lightweight aluminum housings for easy transport and repeated use

Related Guides

Final Thoughts

SEG light box displays offer one of the most visually impressive formats available for trade show and exhibition environments. Whether you choose an integrated backlit system or a front-lit solution using professional exhibition arm lights, the quality of your lighting directly determines the quality of your display.

By selecting the right color temperature, CRI, beam angle, and mounting system, you can ensure that your SEG display performs at its best — on every show floor, at every event.
